New Kverneland Exacta TL GEOspread Spreader
2012-11-08

Kverneland Group is introducing the new Kverneland Exacta TL GEOspread spreader and is again setting new standards on even more accurate spreading by introducing GPS possibilities on the weighing spreaders. Kverneland Group has been awarded already with a silver medal for GEOspread at Agritechnica 2011.

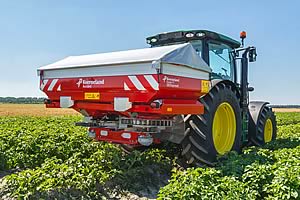

Kverneland Exacta TL GEOspread

  Kverneland Exacta TL GEOspread

The Exacta TL GEOspread is equipped with two actuators on each dosing unit. One of these actuators controls the setting of the discharge point of the dosing cup onto the disc (letter setting), the other controls the application rate. The GEOspread system makes it possible to adjust the letter setting individually for both discs electrically from the tractor cab. This means the working width can be easily adjusted quickly and accurately just by touching the ISOBUS terminal! The GEOspread system can be operated by every ISOBUS Universal Terminal with section control capabilities.

Advantages of GEOspread

  1. Quick an accurate spreading, due to the actuators being directly connected to the discharge point.
  2. Stable disc RPM in combination with discharge point adjustment maintains the spreading pattern (coefficient of variation).
  3. Easy operation; no need to step off the tractor to adjust the working width
  4. 100% ISOBUS compatible for easy operation

The Exacta TL GEOspread is probably the most intelligent system for spreading with GPS in the market.

Kverneland Exacta TL GEOspread – Specifications in Brief:

Exacta TL GEOspread with 275 cm basic hopper width

  Exacta TL 1500 Exacta TL 2150 Exacta TL 2800 Exacta TL 3450
Hopper capacity (l) 1500 2150 2800 3450
Filling height (cm) 110 129 148 167
Width (cm) 275 275 275 275
Filling width (cm) 269 269 269 269
Empty weight (kg) 665 695 725 755
Spread width (m) 12-45 12-45 12-45 12-45
Output (kg/min) 10-320 10-320 10-320 10-320

Exacta TL GEOspread with 290 cm basic hopper width

  Exacta TL 1875 Exacta TL 2550 Exacta TL 3225 Exacta TL 3900
Hopper capacity (l) 1500 2150 2800 3450
Filling height (cm) 110 129 148 167
Width (cm) 275 275 275 275
Filling width (cm) 269 269 269 269
Empty weight (kg) 665 695 725 755
Spread width (m) 12-45 12-45 12-45 12-45
Output (kg/min) 10-320 10-320 10-320 10-320



IsoMatch GEOcontrol

In combination with IsoMatch GEOcontrol the Exacta TL GEOspread makes it possible to do:

  1. Section control: automatic switching on and off implement sections on headlands, boundaries and already covered areas to minimise overlap.
  2. Variable rate control: automatically adjusts the application rate bases on input from the field prescription.
  3. Documentation: saves all operational job data and field maps for exchange via USB to farm management systems.

As from autumn 2012 on a new functionality will be added in the IsoMatch GEOcontrol software which is:

4. Manual guidance: smart boundary recording, boundary shrinking, advised driving position using guidance lines, manual guidance for all operations.

When running IsoMatch GEOcontrol in addition to GEOspread you can set the Exacta TL GEOspread even more accurately. The working width will be automatically adjusted to suit the overlap and coverage using a GPS positioning system. For example, when driving in a wedge or irregular shaped field, GEOspread will start the decrease the working width step by step. GEOspread is using the section control function of IsoMatch GEOcontrol software which is in the IsoMatch Tellus Universal Terminal. The spreader working width is adjusted and the application rate (kg/min) is also adjusted automatically to match the revised spreading width. This unique combination of working width and application rate adjustments makes the Exacta TL GEOspread extremely accurate, with minimum influence on the spread pattern coefficient of variation.

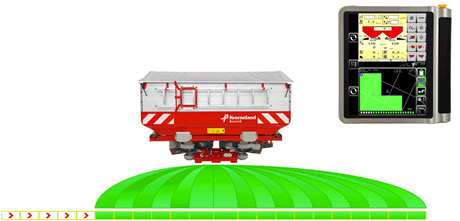

Decreasing the spreading width on the left hand side by 10m
IsoMatch GEOcontrol
